Crosby® Universal Vertical Clamp Model IPU10

Crosby® Universal Vertical Clamp Model IPU10

IPU10

The IPU10 vertical lifting clamp is used for the lifting, turning, moving or vertical transfer of sheet, plates, or fabrications from horizontal to vertical and down to horizontal (180°) as needed. The hinged hoisting eye allows for the clamp to place and lift the load from any direction, or with a multiple leg sling without side-loading the clamp.


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

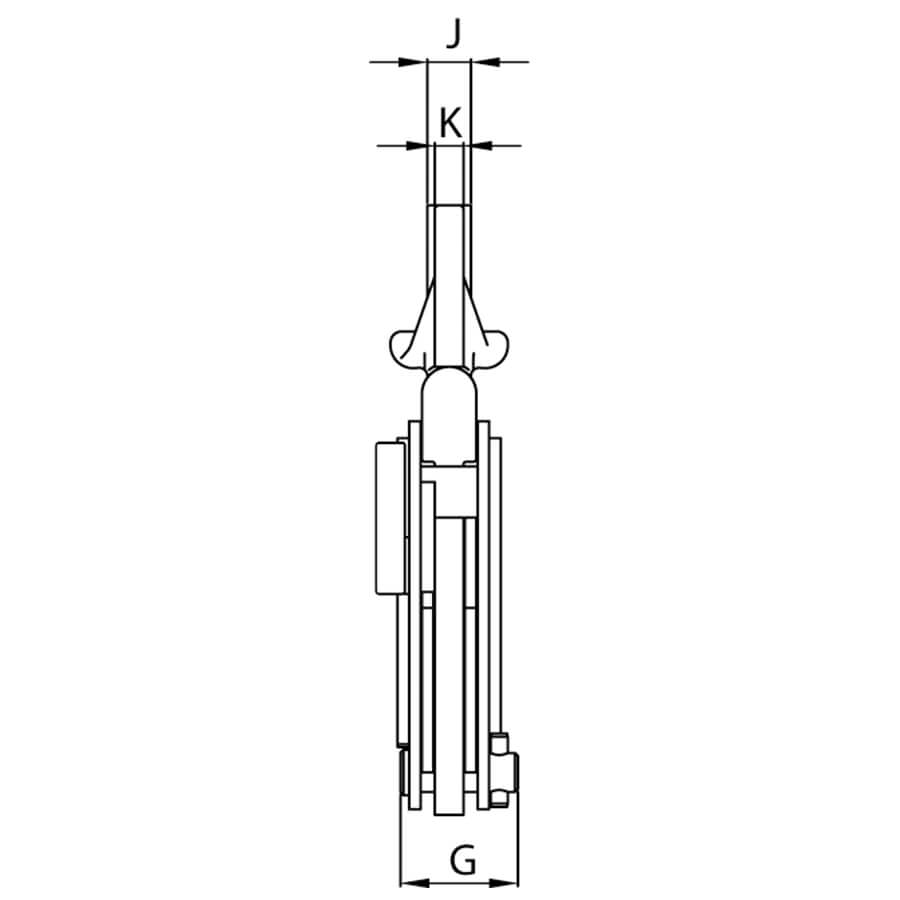

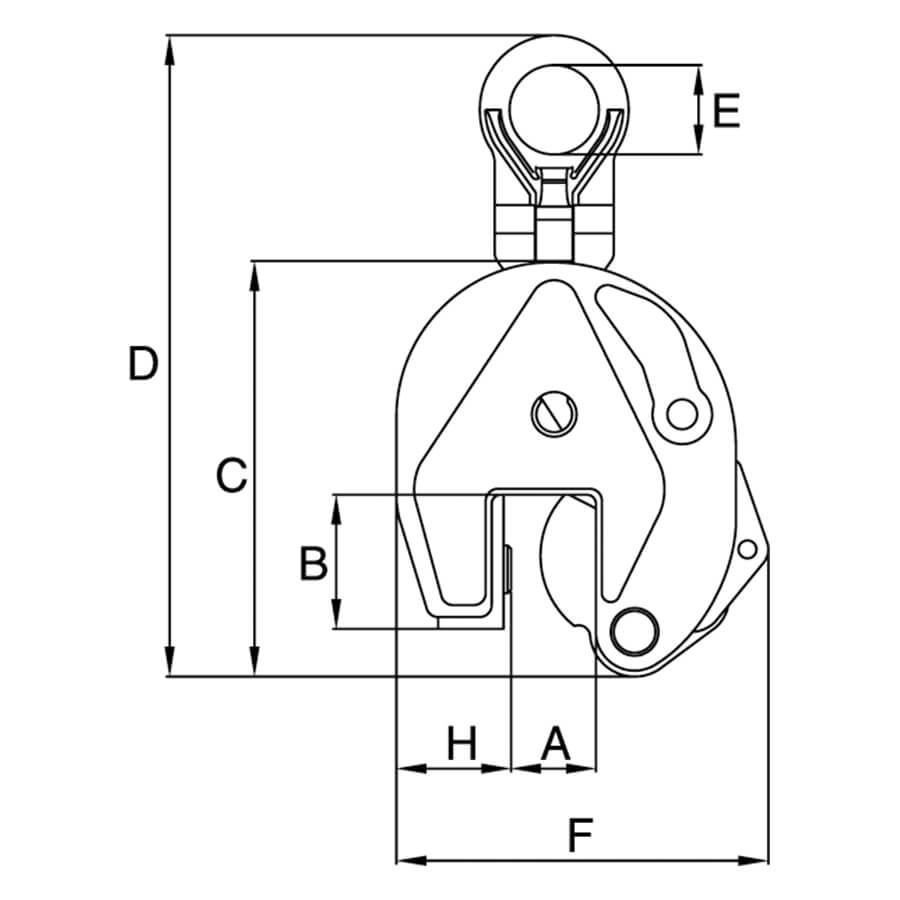

Model Working Load Limit (t)* IPU10 Stock No. Weight Each (lbs.) Dimensions (in.)
Jaw A B C D E F G H J K
IPU10 0.5 2701675 4.19 0 – .63 1.73 5.04 8.98 1.57 4.53 1.61 1.10 – .43
IPU10 1 2701663 5.29 0 – .75 1.77 5.47 8.74 1.57 4.96 1.61 1.50 – .43
IPU10 2 2701677 18.7 0 – 1.38 3.07 7.91 14.65 2.76 7.48 2.40 2.17 – .63
IPU10 3 2701665 32.6 0 – 1.56 3.94 9.96 17.52 2.95 8.86 3.07 2.36 – .79
IPU10 4.5 2701667 35.3 0 – 1.56 3.94 9.96 17.52 2.95 9.13 3.23 2.56 – .79
IPU10 6 2701669 53.0 0 – 2.00 4.96 11.89 20.67 3.15 11.50 3.31 3.74 1.73 .79
IPU10/J 6 2702469 67.3 2.00 – 4.00 4.96 11.89 20.67 3.15 13.46 3.31 3.74 1.73 .79
IPU10 9 2701671 65.0 0 – 2.00 4.96 12.80 21.93 3.15 12.20 3.62 4.13 1.73 .79
IPU10/J 9 2701673 67.2 2.00 – 4.00 4.96 12.80 22.13 3.15 14.17 3.62 4.13 1.73 .79
IPU10 12 2701679 126 0 – 2.13 6.30 15.39 24.53 3.15 13.03 4.61 5.39 1.61 .98
IPU10/J 12 2701681 130 2.13 – 4.25 7.01 17.28 26.50 3.15 16.34 4.61 5.39 1.61 .98
IPU10 16 2701683 159 25 – 2.50 7.01 18.31 28.90 3.46 15.63 4.69 6.02 1.77 .98
IPU10/J 16 2701685 187 2.50 – 5.00 8.19 20.51 31.10 3.46 18.58 4.69 6.34 1.77 .98
IPU10 22.5 2701687 280 .25 – 3.13 8.74 21.81 33.66 4.33 18.50 5.35 7.32 1.93 .98
IPU10/J 22.5 2701689 287 3.13 – 6.13 9.96 24.72 36.61 4.33 22.64 5.35 7.72 1.93 .98
IPU10 30 2701691 337 .25 – 3.13 8.74 21.46 33.86 4.33 18.50 5.98 7.32 2.73 1.18
IPU10 30 2701693 364 3.13 – 6.13 9.84 24.41 36.81 4.33 22.24 5.98 7.72 2.13 1.18
For stainless steel – with universal hoisting eye
IPU10/S 0.5 2702275 4.19 0 – .63 1.73 5.04 8.98 1.57 4.53 1.61 1.10 – .43
IPU10/S 1 2702263 4.63 0 – .75 1.77 5.47 8.74 1.57 4.96 1.61 1.50 – .43
IPU10/S 2 2702277 16.8 0 – 1.38 3.07 7.91 14.65 2.76 7.48 2.40 2.17 – .63
IPU10/S 3 2702265 32.7 0 – 1.56 3.94 9.96 17.52 2.95 8.86 3.07 2.36 – .79
IPU10/S 4.5 2702267 35.3 0 – 1.56 3.94 9.96 17.52 2.95 9.13 3.23 2.56 – .79
IPU10/S 6 2702269 53.0 0 – 2.00 4.96 11.89 20.67 3.15 11.50 3.31 3.74 1.73 .79
IPU10/S 9 2702271 65.1 0 – 2.00 4.96 12.80 21.93 3.15 12.20 3.62 4.13 1.73 .79
IPU10/S 12 2702279 67.3 0 – 2.13 6.30 15.39 24.53 3.15 13.03 4.61 5.39 1.61 .98
For very hard materials – with universal hoisting eye
IPU10/H 0.5 2702175 4.19 0 – .63 1.73 5.04 8.98 1.57 4.53 1.61 1.10 – .43
IPU10/H 1 2702177 16.8 0 – 1.38 3.07 7.91 14.65 2.76 7.48 2.40 2.17 – .63
IPU10/H 2 2702165 32.7 0 – 1.56 3.94 9.96 17.52 2.95 8.86 3.07 2.36 – .79
IPU10/H 3 2702167 35.3 0 – 1.56 3.94 9.96 17.52 2.95 9.13 3.23 2.56 – .79
IPU10/H 4.5 2702169 53.0 0 – 2.00 4.96 11.89 20.67 3.15 11.50 3.31 3.74 1.73 .79
IPU10/H 6 2702171 65.1 0 – 2.00 4.96 12.80 21.93 3.15 12.20 3.62 4.13 1.73 .79

* Design Factor based on EN 13155 and ASME B30.20.

IPU10S
IPU10S: For use on
Stainless Steel material.
IPU10H: For use on
materials with a surface
hardness to 47Rc (450 HB).



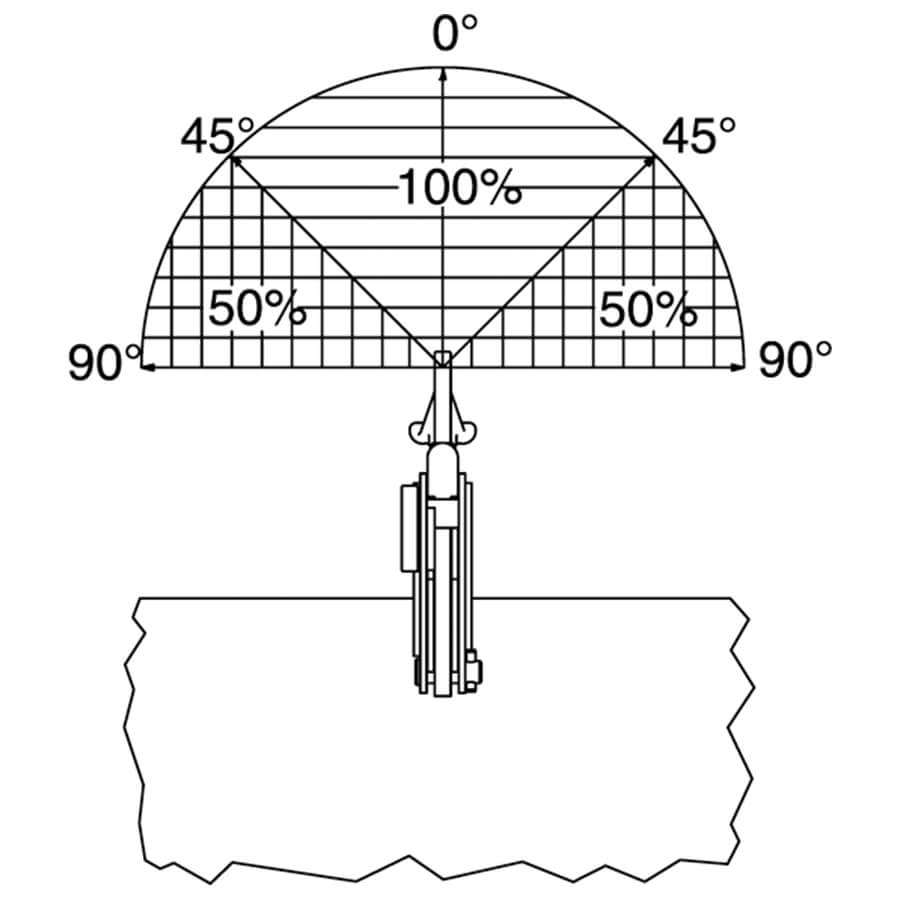

Universal – For Lifting in any Direction

  • Available in capacities of .5 thru 30 metric tons (Higher Working Load Limits are available upon request).
  • Wide variety of jaw openings available: 0” to 6.13”.
  • Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
  • Individually Proof Tested to 2 times the Working Load Limit with certification.
  • Company name (CrosbyIP), logo, Working Load Limit and jaw opening permanently stamped on body.
  • Each product is individually serialized, with the serial number and Proof Load test date stamped on body.
    Serial number is included on the test certificate with maintenance and warranty logbook.
  • Full 180° turning range for material transfer, turning or moving.
  • Available in a variety of styles:
    • IPU10 – Standard clamp for materials with a surface hardness to 37Rc (345HB)
    • IPU10J – Larger jaw opening.
    • IPU10S – For use with Stainless Steel material.
    • IPU10H – For use with materials with a surface hardness to 47Rc (450HB).
  • Lock open, lock closed ability with latch for pretension on material and then release of material.
  • Optional IP-5000 Stinger assembly available (see page 420). Allows for easy connection between the clamp and hoist hook.
  • Minimum WLL of 10% of Maximum WLL.
  • Maintenance replacement kits are available.
  • Manufactured by a ISO 9001 facility
  • All sizes are RFID EQUIPPED.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
