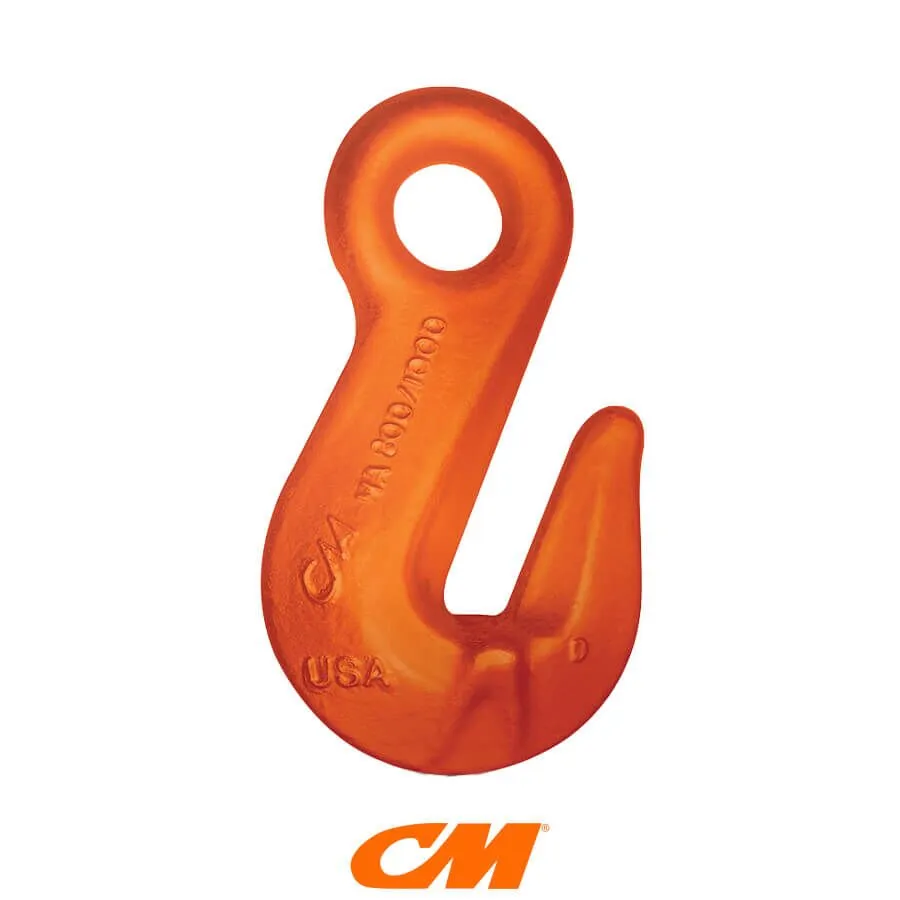

CM Cradle Grab® Hook

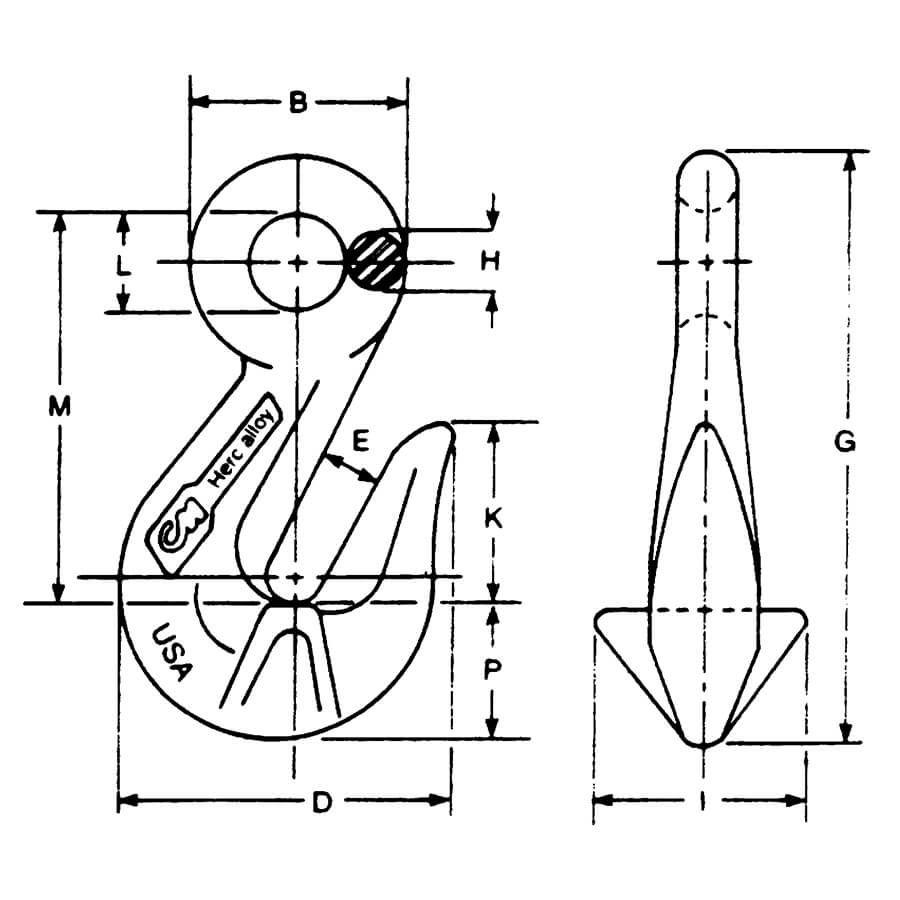

Chain Size Working Load Limit (lbs.)* Dimensions (inches) Weight Each (lbs.)
(in.) (mm) B D E G H I K L M P
7/32 5.5 3,200 1.19 1.75 0.36 2.69 0.38 1.19 0.96 0.63 1.63 .70 0.35
9/32 7 4,410 1.38 1.81 0.36 3.44 0.38 1.19 0.99 0.63 2.36 .70 0.40
3/8 10 8,800 1.78 2.63 0.45 4.67 0.50 1.75 1.48 0.78 3.11 1.06 1.06
1/2 13 15,000 2.28 3.34 0.59 5.86 0.63 1.88 1.98 1.03 3.94 1.30 2.26
5/8 16 22,600 2.75 4.08 0.75 7.13 0.75 2.25 2.63 1.25 4.78 1.59 4.36
3/4 20 35,300 3.19 4.88 0.88 8.25 0.88 2.88 3.06 1.44 5.50 1.88 6.70
7/8 22 34,200 3.75 5.69 1.00 9.63 1.00 3.00 3.75 1.75 6.50 2.12 10.40
1 26 47,000 4.31 7.00 1.19 12.44 1.22 3.88 4.31 1.88 8.09 3.12 20.90
1 1/4† 32 72,300 5.38 8.25 1.50 15.56 1.56 2.50 5.50 2.25 10.50 3.50 40.00

† Not cradle type.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
