OZ Lifting Beam Clamp
Robust all-steel construction Super-quick adjustment to most I-, S-, and W-beams Durable baked enamel paint protection Stainless steel ID tag Individual serial number and test certificate
Categories

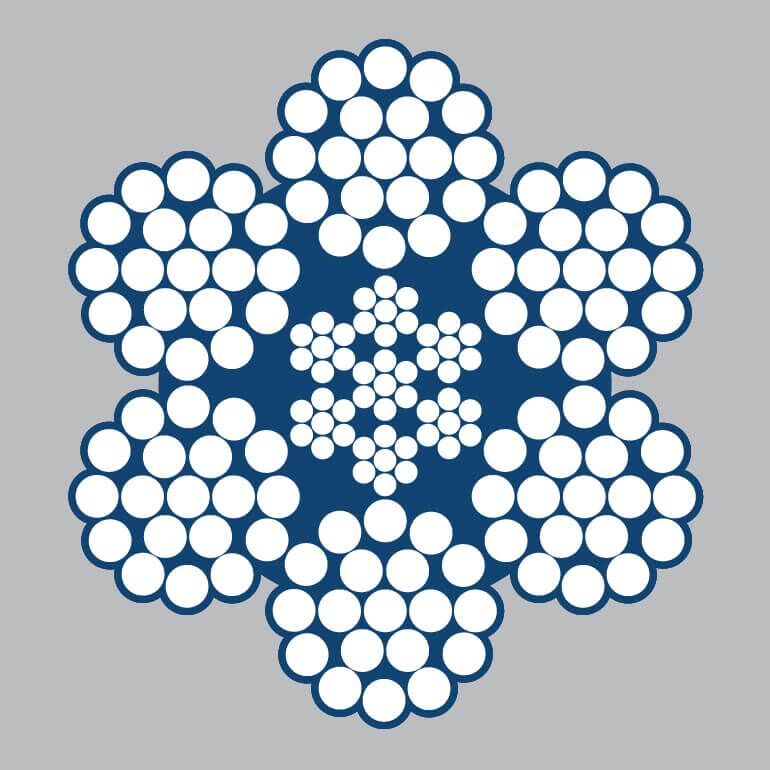

Bright IWRC Steel Core EIPS 6X19 & 6X37 Class
EIPS 6 X 19 Class
| SIZE | STOCK NUMBER | WEIGHT/1,000′ | BREAKING STRENGTH |
|---|---|---|---|
| 1/4 | BIWRC2506X19 | 120 lbs. | 6,800 lbs. |
| 5/16 | BIWRC3126X19 | 180 lbs. | 10,540 lbs. |
| 3/8 | BIWRC3756X19 | 260 lbs. | 15,100 lbs. |
| 7/16 | BIWRC4376X19 | 350 lbs. | 20,400 lbs. |
| 1/2 | BIWRC5006X19 | 460 lbs. | 26,600 lbs. |
| 9/16 | BIWRC5626X19 | 590 lbs. | 33,600 lbs. |
| 5/8 | BIWRC6256X19 | 720 lbs. | 41,200 lbs. |
| 3/4 | BIWRC7506X19 | 1,040 lbs. | 58,800 lbs. |
| 7/8 | BIWRC8756X19 | 1,420 lbs. | 79,600 lbs. |
| 1 | BIWRC1006X19 | 1,850 lbs. | 103,400 lbs. |
Bright IWRC Wire Rope

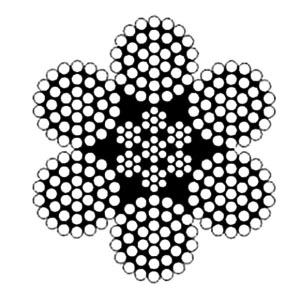

EIPS 6 X 37 Class
| SIZE | STOCK NUMBER | WEIGHT/1,000′ | BREAKING STRENGTH |
|---|---|---|---|
| 1/4 | BIWRC2506X37 | 120 lbs. | 6,800 lbs. |
| 5/16 | BIWRC3126X37 | 180 lbs. | 10,540 lbs. |
| 3/8 | BIWRC3756X37 | 260 lbs. | 15,100 lbs. |
| 7/16 | BIWRC4376X37 | 350 lbs. | 20,400 lbs. |
| 1/2 | BIWRC5006X37 | 460 lbs. | 26,600 lbs. |
| 9/16 | BIWRC5626X37 | 590 lbs. | 33,600lbs. |
| 5/8 | BIWRC6256X37 | 720 lbs. | 41,200 lbs. |
| 3/4 | BIWRC7506X37 | 1,040 lbs. | 58,800 lbs. |
NOT FOR AIRCRAFT USE. (“Aircraft Cable” has become an accepted industry term for small diameter 7×7 and 7×19 construction wire rope intended for industrial and marine application.) Read important warnings and information.
WARNING: Any warranties, expressed or implied, concerning the use of this product apply only to the nominal strength of new, unused wire rope. All equipment using this product must be properly used and maintained. Wire rope must be properly stored, handled, used and maintained. Most importantly, wire rope must be regularly inspected during use. Damage, abuse or improper maintenance can cause rope failure. Consult the AISI Wire Rope Users Manual, ASME or ANSI Standards, before usage. Wire rope removal criteria are based on the use of steel sheaves. If synthetic sheaves are used, consult the sheave equipment manufacturer. WARNING!
Bulk Wire Rope Information
- Design & Construction
- Operation & Maintenance
- Matching the Wire Rope with Sheaves and Drums
- Calculating Drum Capacity
- Inspection of Wire Rope
- Lubrication & Preservation
- Wire Rope Selection
Product Information
- General Purpose Wire Rope
- Rotation Resistant Wire Rope
- High Performance Low Rotation Wire Rope
- Low Rotation Wire Rope
- High Performance Wire Rope
Class Comparison
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
